Features

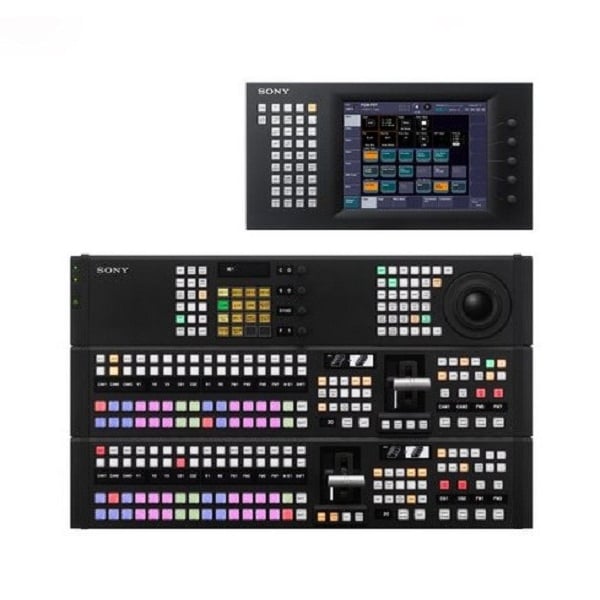

  • Control Panel for MVS-3000A
  • 2 M/E Rows
  • 16 Crosspoint Buttons
  • Sony original highly reliable colored buttons
  • Intuitive Menu Operation
Specification
  • Compatible With: MVS-3000A Switcher
  • Weight: 12 kg
  • Minimum Inrush Current: 36 A peak, 8 A r.m.s. (240 V AC)
  • Operating guaranteed temperature: +5 dC to +40 dC
  • Performance guaranteed temperature: +10 °C to +35 °C
  • Operating humidity: 10 % to 90 %
  • Storage temperature: -20 °C to +60 °C
  • Power requirements: AC 100 to 240 V, 10 %
  • Power frequency: 50/60 Hz
  • Current consumption: Maximum 1.1A
